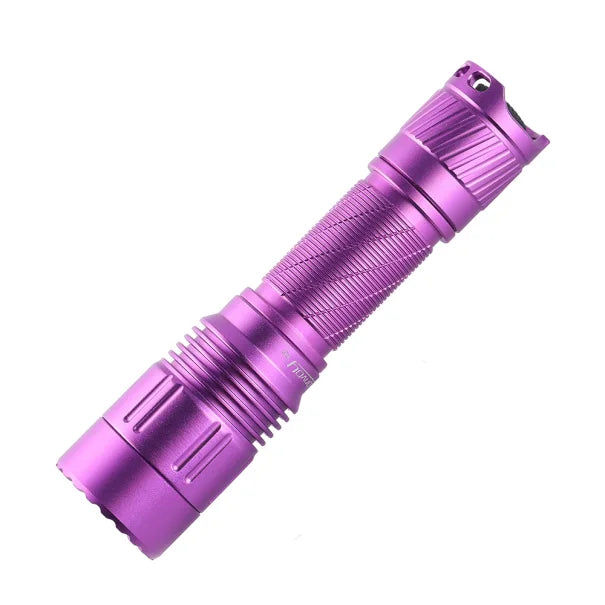

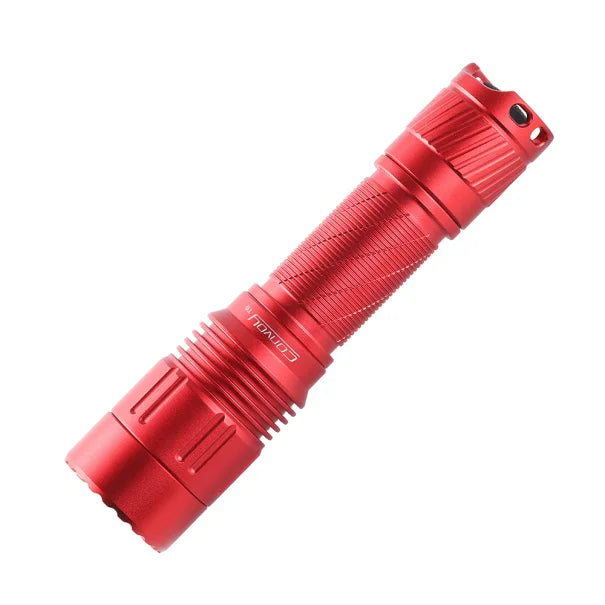

Convoy T6 SFT25R SFT40 AA 14500 EDC Flashlight

Description
Review
Shipping & Tracking

Basic introduction
Construction	Material:	Aluminum alloy
	Lens type:	ar-coated glass lens

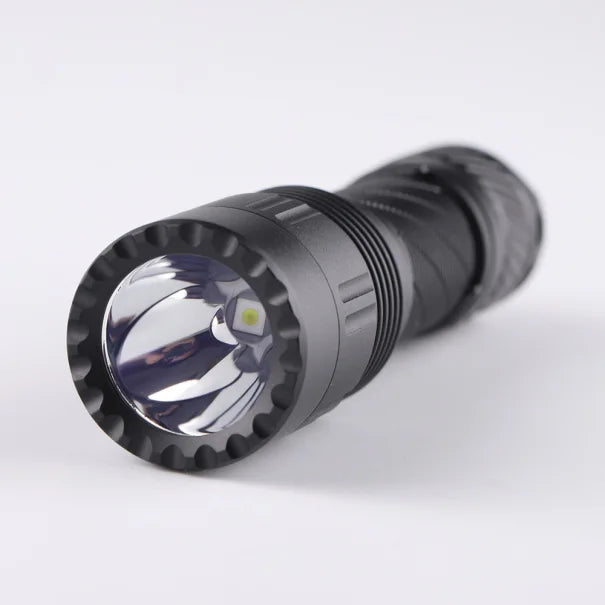

	Reflector:	made of aluminium alloy, the reflective surface is vacuum-coated.
		smooth for SFT-25R , SFT40
		orange peel for 519A
	LED MCPCB:	made of copper. DTP thermally conductive structure. 3.0 W/(m·K) thermal grease below the MCPCB.
	Head structure:	integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.)
	Switch:	reverse type, Au-coated phosphor copper spring soldered on the PCB, it can bear max 10A current ,no need to add bypass.

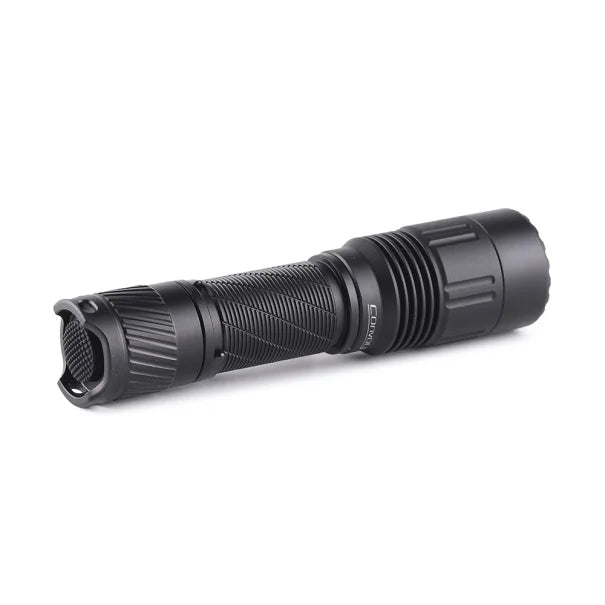

	Tail:	The edges are chamfered. The U-shaped groove makes it easy for the thumb to click the silicone button. The single-sided double rope hole makes the rope not affect the handstand of the flashlight.
Electro&optical parameters	Driver output:	Max current output 0.5A (AA battery)
	Driver output:	Max current output 5A (14500 lithium battery)
	Driver type:	Boost constant current (AA battery)
	Driver type:	BUCK (14500 lithium battery)
	Driver efficiency:	75%-95%
	Mode:	See below for details
	Flux:	300-1200LM
	Illumination distance:	50-100 meters (estimated by the naked eye, data for reference)
	Illumination distance:	? (ANSI standard)
	Runtime:	?
Related features	Low voltage warning:	Yes
	Reverse polarity protection:	Physical anti-battery reversal. Pls use top-head battery.
	Mode memory:	Yes, The user can manually turn off the memory.
	Temperature control function：	Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
	Tailstand:	Yes
About the battery	Battery included:	No
	Required battery type:	Top-head 1.2V NiMH battery 1.5V alkaline battery 1.8V lithium metal primary disposable battery 3.7V lithium 14500 battery
	Required battery quantity	1 piece
Size & weight	Length:	103mm
	Diameter:	head 25mm / body 18.5mm / tail 21mm
	Weight:	net 56.4g , gross 68g

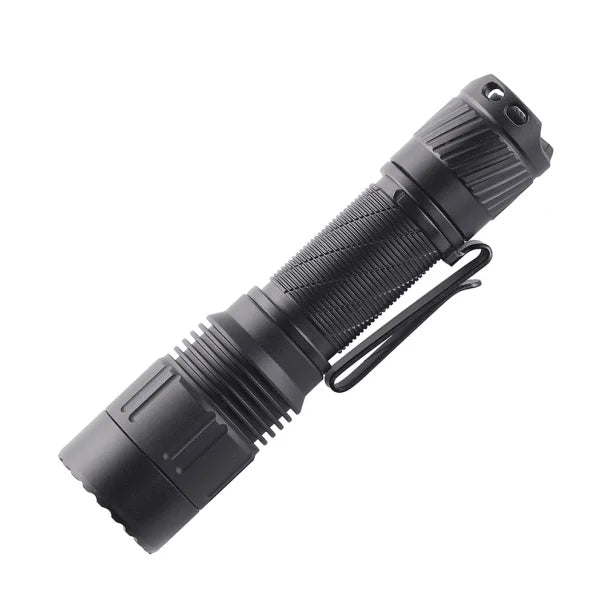

Accessory:	1* lanyard , 1* clip

Drive parameters:

1. The flashlight is powered by a 1.5V battery or a 4.2V lithium battery. Switch the flashlight on or off by the tail switch (full click) or switch mode (Half-press).

The maximum output current is 0.5A when using a 1.5V battery, and the maximum output current is 5A when using a 4.2V lithium battery

2. Battery judgment function: When the voltage is above 2V, it is judged as a 4.2V battery, and when the voltage is below 2V, it is a 1.5V battery. It does not turn on when powered on by 2-2.8V.

3. Low voltage protection. When using a 4.2V battery, the voltage will flash 3 times slowly when the voltage is lower than 3V, and it will automatically shut down when the voltage is lower than 2.8V. When using a 1.5V battery, there is no low voltage protection.

At 4.2V, strobe (100%), slow flashing (30%), beacon (30%), battery detection (1%) SOS (20%), the above is the maximum brightness ratio.

4 modes:
1%-10%-35%-100%

12 groups:
if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (1%、10%、30%、100%)

-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (1% 10%、35%、100%、strobe、biking、batcheck)

-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%、35%、10%、1%)

-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1% 20%、100%、strobe、biking、batcheck)

-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%、20%、100%)

-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%、20%、1%)

-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (1% 10%、50%、strobe、biking、batcheck)

-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(1%、10%、50%)

-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%、10%、1%)

-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (20%、100%)

-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%、20%、strobe)

-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100%)

Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-check instructions:

<2.95V 1 flash,

2.95-3.25V 2 flashes,

3.25-3.55V 3 flashes,

3.55-3.85V 4 flashes,

>3.85V 5 flashes

Notice that there is no battery-check function if flashlight is powered by the 1.5V battery
