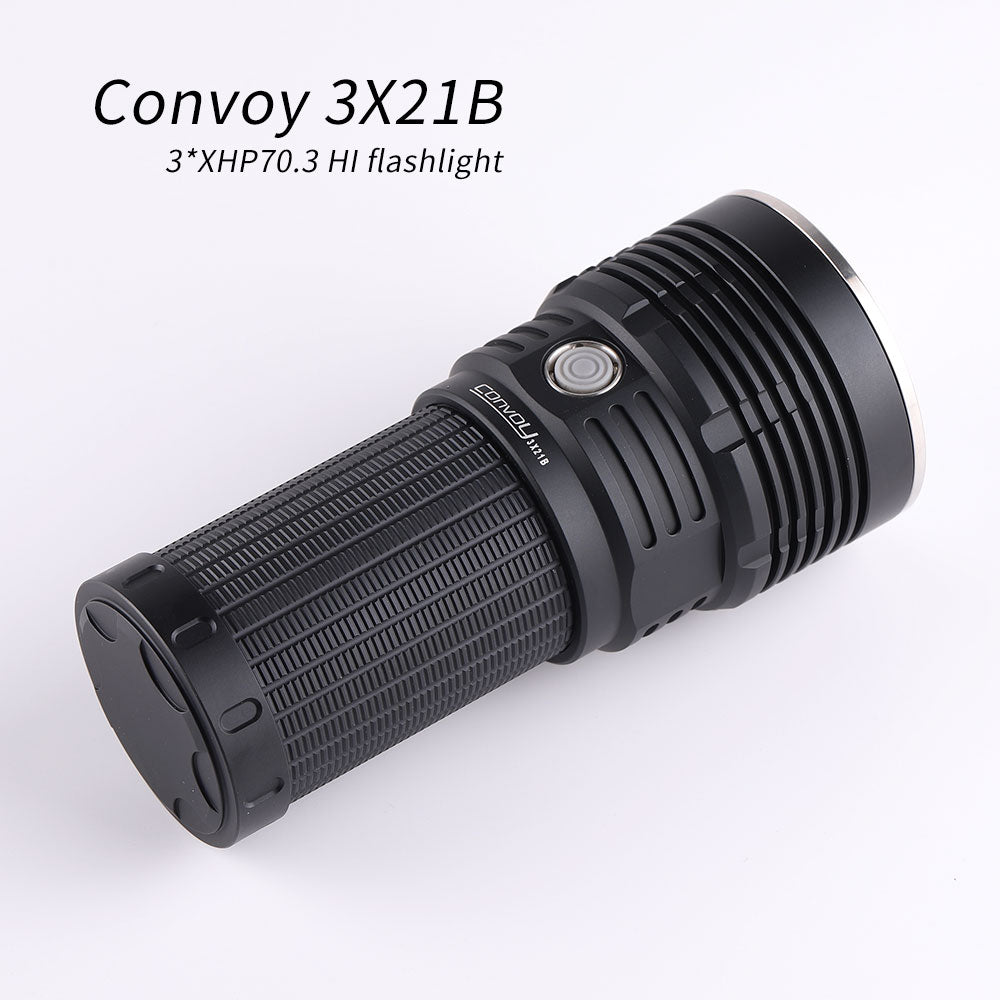

Convoy 3X21B XHP70.3 12000lm 529m 21700 Flood Flashlight

If you carry the flashlight in a bag, please unscrew the battery tube by half a turn to prevent the flashlight from accidentally lighting up and burning the valuables in the bag.

Parameter

Material: aluminum alloy
Host: black integrated compartment
Low voltage warning: automatic power off
Reverse polarity protection: none, The positive pole of the battery should face the head of the flashlight, otherwise it will burn out the drive circuit.

Lens type: double-sided coated glass lens
Reflector: Orange peel

Driver: output 6V 15A, boost constant current, Built-in temperature protection

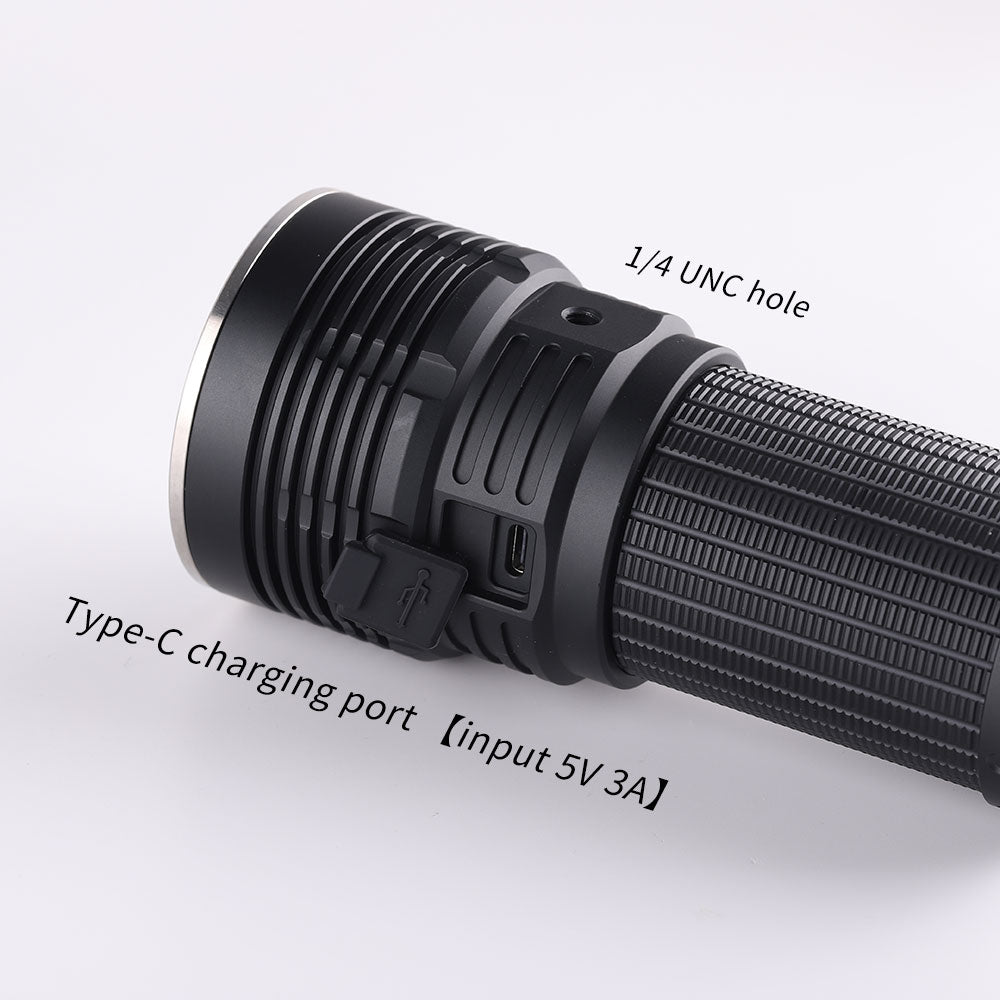

Charging interface: TYPE-C (charging current 3A)
Switch position: on the side of the flashlight head
Mode memory: yes
Tailstand: yes
Required battery type: 3*21700 batteries (without protective plate)
Number of batteries required: 3

Battery included or not: no included
Luminous flux: maximum 12000LM (theoretical output value of LED, the actual light output is lossy, for reference only)
Illumination: Maximum 70KCD
Range: up to 529 meters (ANSI standard, for reference only)

Head diameter: 69mm
Battery tube diameter: 51.8mm
Flashlight length: 150.2mm
Net weight: 520g

Mode operation instructions:

1. click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
2. flashlight off, press the button  ——>  moonlight mode   [This brightness will not be remembered]
3. flashlight on or off, 2-click the button  ——>  turbo 100%
4. flashlight off,3-click the button   ——>  strobe
5. flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.
6. flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )
7. flashlight off,6-click the button   ——>   ramping mode switch to   4modes 1%-10%-40%-100% 8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

The flashlight has low voltage protection and temperature control protection.
